Editing AsciiDoc with Live Preview

Here’s an overview of the different ways to setup live preview of AsciiDoc.

Using a web browser (preview only)

All you need to preview an AsciiDoc document in a web browser is to install the Chrome extension, the Firefox add-on or the Opera extension. Then you can see the AsciiDoc file rendered as HTML just by visiting it!

Installing the development versions

The validation process of a browser extension / addon can take a long time. If you want the latest and greatest version you can use the direct download links below.

Chrome

  1. Download asciidoctor-chrome-extension.nex

  2. Open chrome://extensions

  3. Drag’n’drop the .nex file into the page to install

Firefox

  1. Download asciidoctor-firefox-addon.xpi

  2. Open the file with Firefox to install

Opera

  1. Dowload asciidoctor-chrome-extension.nex

  2. Open opera://extensions

  3. Drag’n’drop the .nex file into the page to install

Using a modern text editor/IDE

The following editors/IDEs support both syntax highlighting and preview rendering (in alphabetic order):

AsciiDocFX

To run AsciiDocFX, you will need to:

  1. Install JDK 8

  2. Download the latest AsciidocFX.zip and extract it

  3. Run bin/asciidocfx.bat or bin/asciidocfx.sh

More information:

Atom

Install Atom. Then from the Atom editor menus, navigate to Atom ▸ Preferences. From there, open the Packages tab and install:

AsciiDoc Preview package

enables live preview

AsciiDoc package

enables syntax highlighting (AsciiDoc language support)

More information:

Brackets

Install Brackets. Then from the Brackets file menu, open the extension manager. Browse available extensions and install AsciiDoc Preview.

More information:

IntelliJ IDEA

Install the community plugin AsciiDoc.

Using a system monitor

The first step is to setup a file monitor to watch for changes. We’ll use Guard for that task. Install Guard and the shell file monitor using:

gem install guard guard-shell

You’ll need Asciidoctor to process the document. Install Asciidoctor using:

gem install asciidoctor

Next, create a file named Guardfile in the same directory as your document. Configure Guardfile to monitor the file (or files) you are editing and then regenerate the HTML file whenever a change is detected.

Here’s an example of a basic Guard configuration for monitoring a single file:

Guardfile
require 'asciidoctor'

guard 'shell' do
  watch(/^mydoc\.adoc$/) {|m|
    Asciidoctor.convert_file m[0]
  }
end

Now start Guard:

guard start

Whenever Guard detects a change in the mydoc.adoc file, Asciidoctor will process it using its render API and update (overwrite) the mydoc.html file.

Instead of monitoring a single file, you can monitor all files matching a regular expression. In the watch block, replace mydoc.adoc with .*\.adoc to monitor all files that end in .adoc in the current directory.

Using Bundler

An alternative way to do retrieve all the required gems is to use Bundler. Bundler is a dependency management system for ruby. The easiest way to get started is to follow the steps below:

  1. Install the bundler gem

    gem install bundler
  2. Start a basic Gemfile

    bundle init
  3. Edit the Gemfile to add all the required gems

    source 'https://rubygems.org'

    gem 'guard'
    gem 'guard-shell'
    gem 'asciidoctor'
  4. Install the bundle

    bundle install
  5. Create Guardfile

    Create a file named Guardfile in the same directory as your document. Configure Guardfile to monitor the file (or files) you are editing and then regenerate the HTML file whenever a change is detected.

    Here’s an example of a basic Guard configuration for monitoring a single file:

    Guardfile
    Bundler.require :default

    guard 'shell' do
      watch(/^mydoc\.adoc$/) {|m|
        Asciidoctor.convert_file m[0]
      }
    end
  6. Run

    bundle exec guard

Web preview

Next, install Epiphany (now called Web).

Alternatively, you can use any browser with an auto-refresh plugin. Epiphany just happens to do it out of the box by monitoring the file system for changes (similar to how Guard works).

Open Epiphany (Web) (or your web browser of choice w/ the auto-refresh plugin) and navigate to the mydoc.html file. Also open up the source file in your editor. Put the windows side-by-side so that you can see both of them. (Use Alt+F5 to unmaximize Epiphany (Web) if you don’t see the draggable window frame).

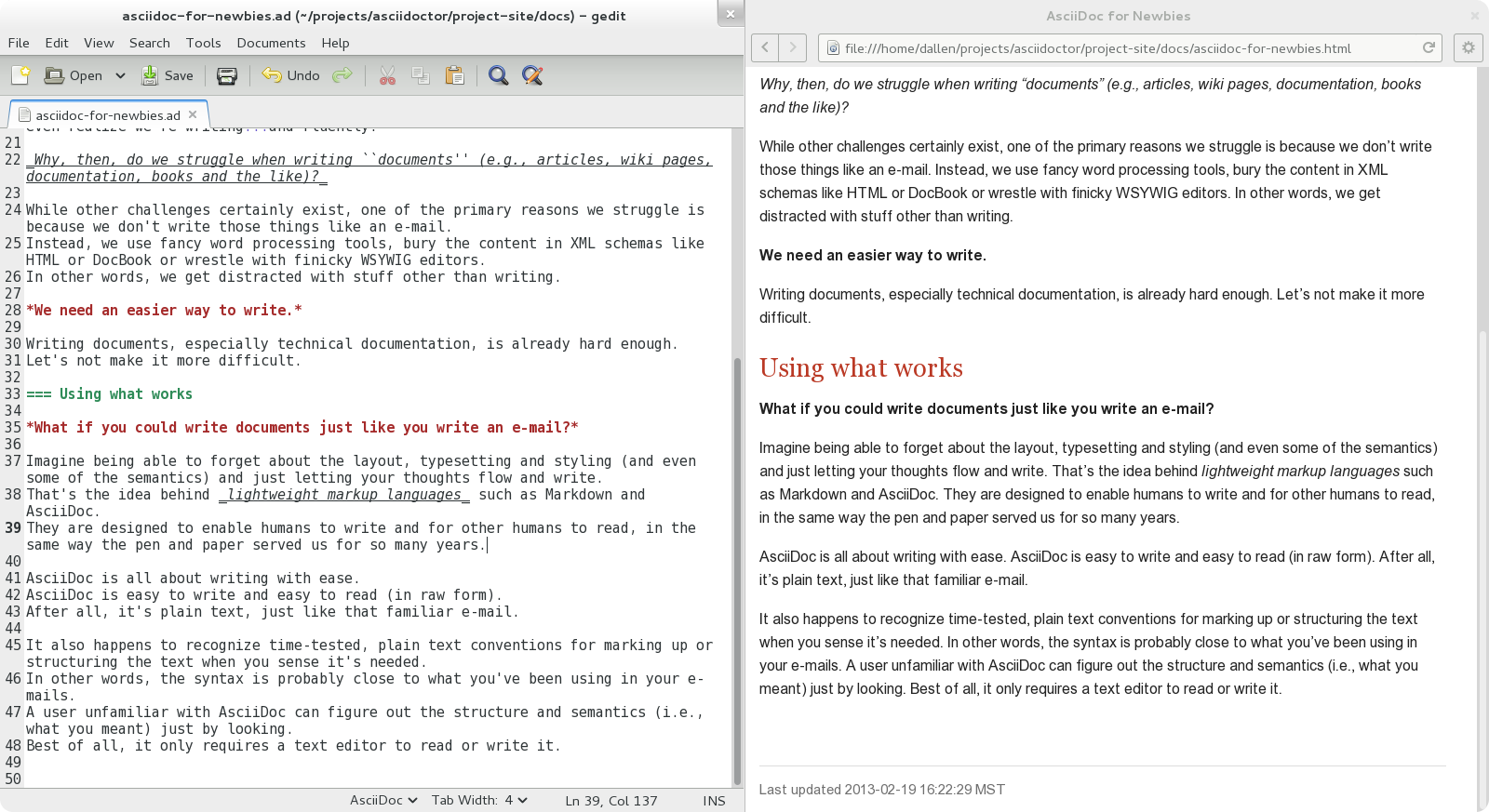

Tiled editor and web preview

Once the two windows are tiled, make a change to the source document. Observe that the preview is automatically updated without affecting the scroll offset.

Survey says…​

Asciidoctor + Guard + Epiphany (Web) == Doc writing pleasure!

Alternative options

Below are some other tools you can use to setup a similar environment to the one described above.

LiveReload

If you want to use Chrome or Firefox instead of Epiphany, check out LiveReload. It describes itself as:

The Web Developer Wonderland
(a happy land where browsers don’t need a Refresh button)

LiveReload monitors changes in the file system. As soon as a file is saved, it is sent to the browser using a WebSocket. In addition to reloading the HTML, it supports live updating of CSS and JavaScript in the page.

You can setup LiveReload (for free) on any operating system using the Guard::LiveReload plugin and the companion LiveReload extension for Chrome or Firefox.

Here’s the command to install the Guard::LiveReload plugin:

gem install guard-livereload yajl-ruby

Next, install one of the two browser extensions.

After installing the Chrome LiveReload extension, you need to check the "Allow access to file URLs" checkbox in Tools > Extensions > LiveReload in order for it to work with local files.

Add the following stanza at the bottom of the Guardfile you created above.

Guardfile, LiveReload block
guard 'livereload' do
  watch(%r{^.+\.(css|js|html)$})
end

Start Guard, navigate to the HTML file in your browser, then activate the LiveReload on that page by clicking the LiveReload button in the toolbar.

Whenever the AsciiDoc file is changed, first the Guard "shell" plugin will be triggered to generate the HTML file, then the "livereload" plugin will be triggered to send the HTML to the browser.

Asciidoctor + Guard + LiveReload + Chrome or Firefox == The Documentation Writer Wonderland
